TFS-CP1-200IE Custom Pad Printing Machine, ideal for SD cards, auto parts & so on.

Detailed Introduction

Are you struggling with printing on SD cards? This small, lightweight substrate poses challenges like achieving full-edge printing—especially ensuring the edges are crisp without ink bleed—and preventing the pad from sticking during automated production.

Let's take a closer look at Dehuisheng's tailored solution: the TFS-CP1-200IE Custom Pad Printing Machine.

Product Features:

1. Intelligent CNC System: Equipped with a PLC and touchscreen dual-control interface, allowing digital settings for parameters like forward and backward movement. The operation is intuitive, simple, and user-friendly.

2. Full Servo Drive: Both the front/back and up/down movements of the pad are driven by servo motors, ensuring high motion control precision and accurate repeat positioning.

3. High-Precision Printing Capability: Overall printing precision reaches up to ±0.02mm, making it suitable for high-accuracy printing applications with strict positional requirements.

4. Efficient Production Cycle: Printing speeds of up to 800–1200 pieces per hour.

5. Integrated Automatic Cleaning Function: Features an automatic pad cleaning device, reducing manual intervention and maintaining consistent print quality.

6. Hot Air Drying System: Built-in hot air blower system accelerates ink curing, ensuring production continuity and optimal printing results.

7. Wide Compatibility: Supports a maximum printing area of Φ60mm and a workpiece height of up to 280mm, adaptable to various product specifications.

8. User-Friendly Safety Protection: Utilizes a combination of safety guards and aluminum profile enclosures, ensuring operator safety while allowing clear visibility of the machine’s operation.

9. Eco-Friendly Ink Cup Design: Employs a sealed ink cup (φ90mm) to ensure uniform ink supply, environmental friendliness, and reduced ink waste.

10. Streamlined and Efficient Workflow: The process is simplified (loading → printing → unloading), making it easy to integrate into production lines for rapid, cyclic operations.

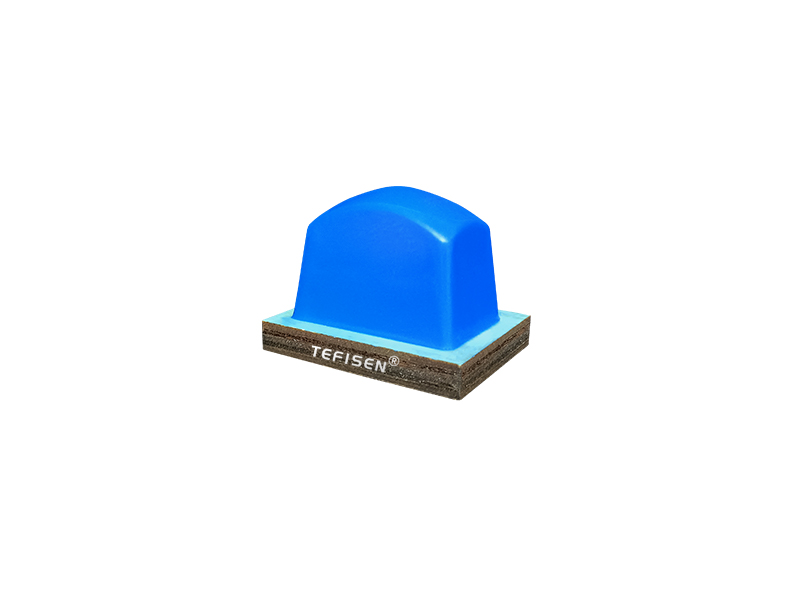

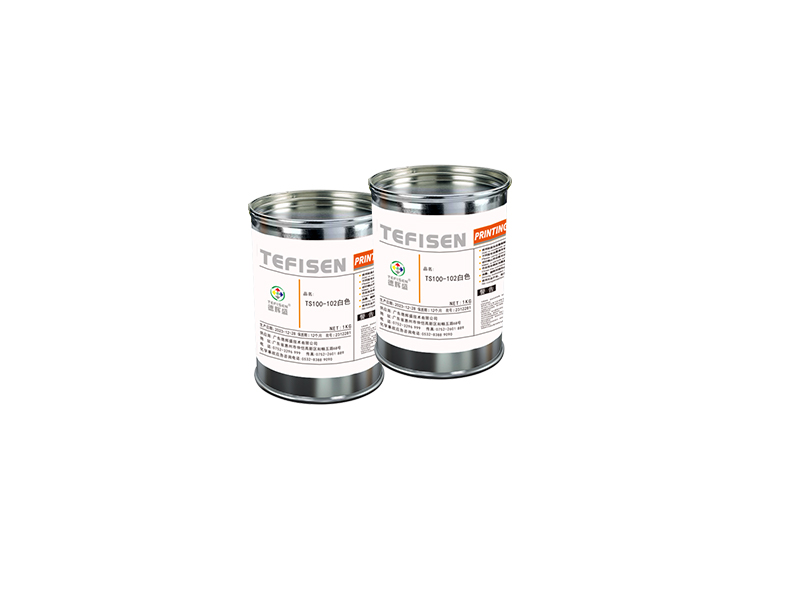

Matching Accessories: TS-F3825 Printing Pad and TS-100 Series Eco-Friendly Ink

TS-F3825 Printing Pad Features:	TS-100 Series Eco-Friendly Ink Features:
1. Anti-static, high wear resistance. 2. Fine rubber texture with excellent rebound elasticity. 3. No shrinkage, easy ink transfer. 4. Size：48*35*30mm	1. High Environmental Compliance: Meets multiple standards including REACH, RoHS, Halogen, PAHs, PFOS/PFOA, etc. 2. Excellent Adhesion and Solvent Resistance. 3. High Gloss Finish.

Standard Steel Plate: 100 × 250 mm

Stroke: 150 mm

Ink Cup: φ90 mm

Printing Precision: ±0.03 mm

Printing Area: φ60 mm

Printing Speed: 1200–1600 pcs/hour

Max. Object Height: 280 mm

Power Supply: 220V, 50Hz
